Quick Details

  • Condition: New
  • Type: Industrial Sewing Machine
  • Place of Origin: Shaanxi, China (Mainland)
  • Brand Name: KEESTAR
  • Model Number: 80700CD4HL
  • Stitch Formation: Chain Stitch
  • Mechanical Configuration: Flat-Bed
  • Max. Sewing Speed: 1400rpm
  • Max. Sewing Thickness: 19mm
  • Stitch Length: 6-12mm
  • Power: 750W
  • Overall Dimensions: 490x380x520mm
  • Feed Mechanism: Walking Foot, Walking Foot, Upper feed and lower feed
  • Certification: ISO9000
  • After-sales Service Provided: Overseas third-party support available
  • Needle: 9848G300/120
  • Presser Foot Lifter: Electro-pneumatically
  • Keywords: FIBC bag sewing machine

Packaging & Delivery

Packaging Details cartons
Delivery Time 3-15 working days after receipt of payment

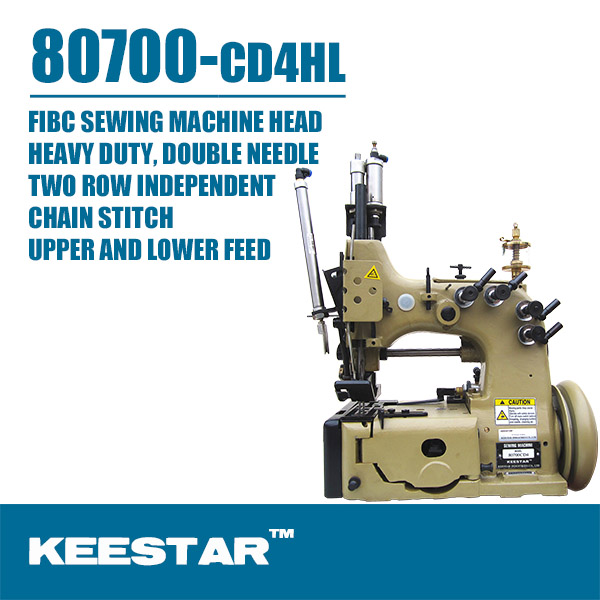

KEESTAR 80700CD4HL double needle chain stitch FIBC bag sewing machine

Product Description

Application:

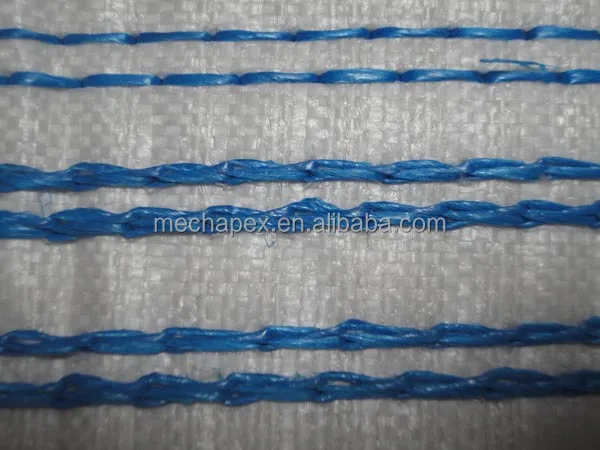

  • Two independent rows double chain stitch and guides for polypropylene filler cord from the top and/or from below for sealing the needle punctures of the left needle;

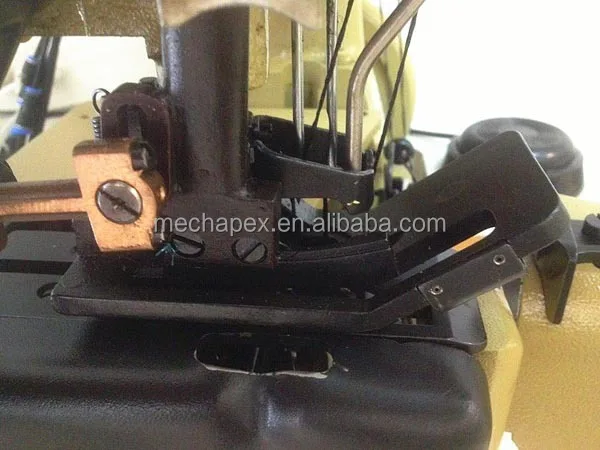

  • Upper and lower feed with pneumatic operated presser foot and upper feed dog lifter, pneumatic hot thread chain cutter left of the needle;
  • Capacity up to 18mm, special for heavy duty seaming on big bag;
  • Needle gauge 7.2mm.




Feature:



  1. Double needle four thread chain stitch 401.401;
  2. Maximum sewing speed up to 1,400rpm;
  3. Maximum sewing capacity up to 18mm (45/64in.), 56 plies of paper;
  4. Adjustable stitch length from 6 to 12mm;
  5. Built-in walking foot feed system;

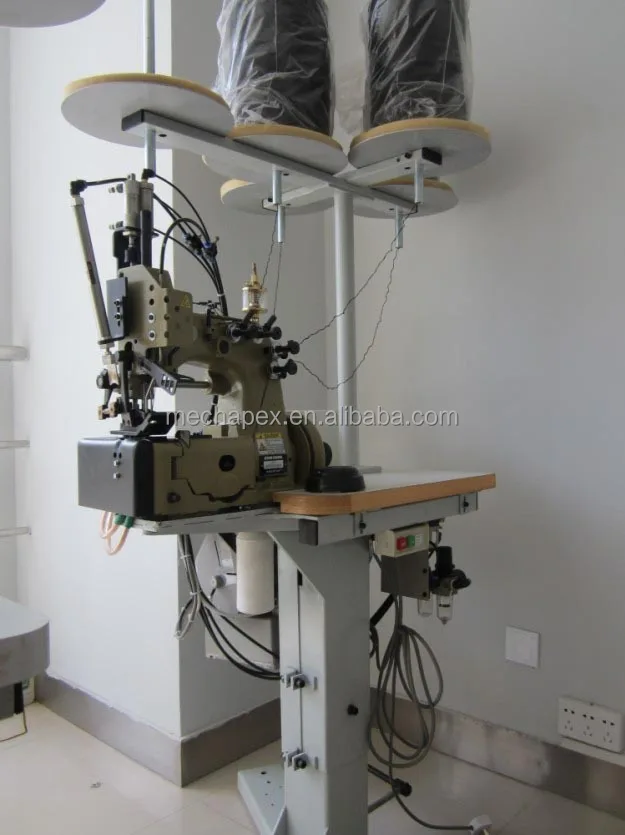

  6. Special designed pedestal fitted;
  7. Low noise, low vibration.

Specification:



Model80700CD4HL
Stitch length6-12mm
Max. sewing speed1,400rpm
Max. sewing capacity18mm (45/64in.)
Stitch typeDouble Needle Double Thread Stitch 401.401
Needle gauge                                   7.2mm (9/32in.)
Feed mechanismWalking foot
LubricationManual with Built-in Sight Feed Oiler
CutterElectro-pneumatically Operated Hot Thread Chain Cutter
Presser foot lifter                    Electro-pneumatically Operated
Needle9848G300/120
ThreadPolyester 20/6
Net weight42kg
Gross weight45kg
Dimension490×380×520mm
picture:







Packaging & Shipping

♦Packing Details: Cartons, Export Worthy Packing

Shipping Details: Support all trade terms


Company Information

Keestar Industries(Shaanxi) Co., Ltd is leading manufacturer of bag closing machine, bag making sewing machine, automatic heavy duty sewing system and walking foot sewing machine world widely.

 KEESTAR has been focus on developing advanced sewing technology since our establishment. We have developed variety sewing systems for many applications include filled bag open top closing, woven bag making, FIBC(Flexible Intermediate Bulk Containers)seaming, sails manufacturing and repairing, slings and lashing straps, safety harness and ropes, buffing wheel and polishing wheel, shoes and footwear, sofas and automotive upholstery, carpet and rugs, net and mesh, saddles & harness and other seamed products.



KEESTAR holds leading market share in world market for bag closing machine (system) and automatic heavy duty sewing system, and FIBC sewing machine are widely applied by many world class FIBC factories.



Company location





FAQ

1. Q: Is machine sample available?

A:No. We can supply spare parts sample, but customer needs to pay for it and bear shipping cost, we   will return the parts value once order confirmed.
2. Q: What service you can supply?

A: Model recommendation, sample making, technical consulting, after-service support
3. Q: Do you supply overseas installation and debugging?
A: Yes, but customer needs to bear all overseas expenditure.
4. Q: Is your machine all original with Union Special or Newlong?
A: No. But for most of the models, it can be 100% replaceable.
5. Q: Do you supply spare parts?

A: Yes, and with fast lead time.
6. Q: What gurantee you supply?

A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper, throat  plate.
